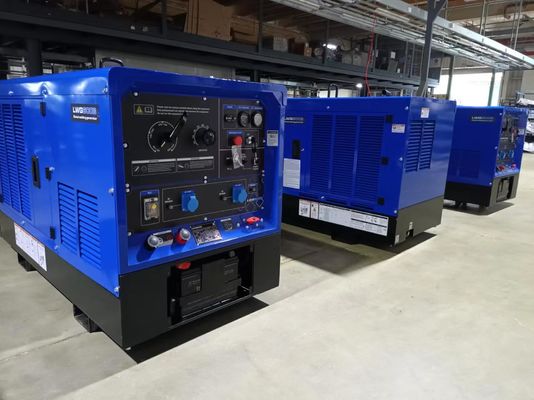

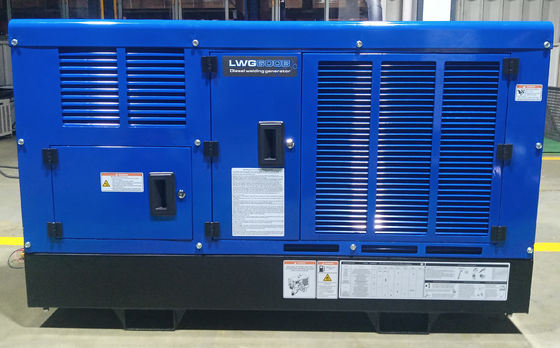

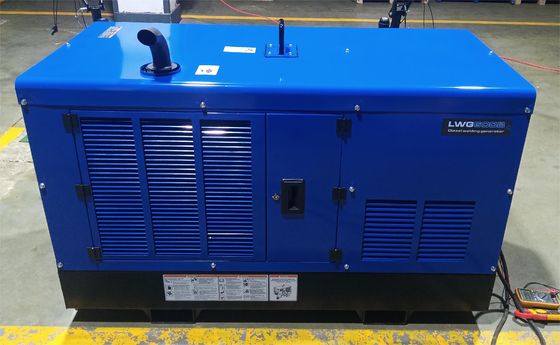

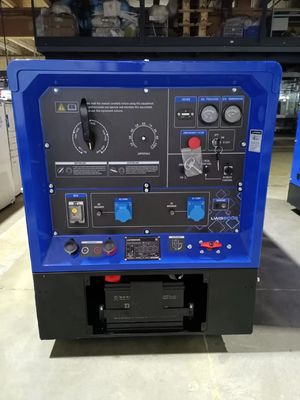

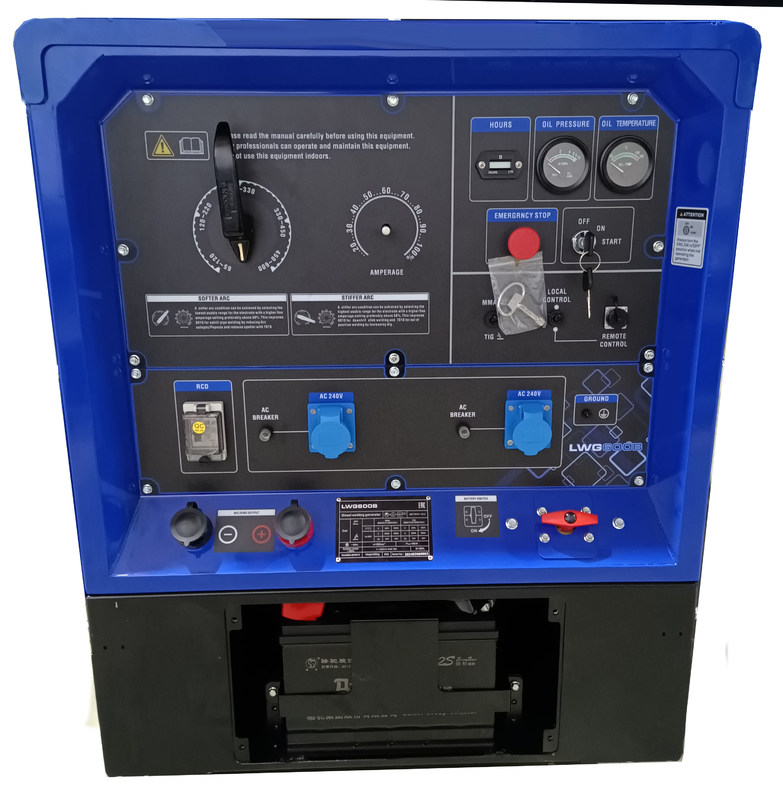

Powerful and Versatile Pipeline Welding Machine for Field-Based Work
Produktdetails:
| Herkunftsort: | China |
| Markenname: | GENWELD |
| Zertifizierung: | CE |
| Modellnummer: | LWG600B |
Zahlung und Versand AGB:
| Min Bestellmenge: | ein Satz |
|---|---|
| Preis: | USD 15000-20000 SET |
| Verpackung Informationen: | Karton plus begasungsfreier Holzkäfig, Verpackungsmaße: 1835 x 925 x 1135 mm |
| Lieferzeit: | 8-10 WOCHEN NACH ERHALT 30 % VORZAHLUNG |
| Zahlungsbedingungen: | L/C, T/T |
| Versorgungsmaterial-Fähigkeit: | 20 Sätze pro Monat |
|
Detailinformationen |
|||
| Schweißprozess: | MMA (Zelluloseschweißen)/WIG/Fugenhobeln | MOTOR: | 4 Zylinder, luftgekühlt |
|---|---|---|---|
| Generatorleistung: | Einphasig 240 V/4,5 kW | Schweißstrombereich: | 65-600A |
| Elektrodencode: | 2.5-10mm | Nettogewicht: | 880kg |
| Schutzklasse: | IP23 | Modell: | PW-2000 |
| Kühlmethode: | Luftkühlung | Packmaß: | 1835×925×1135mm |
| Kraftstofftyp: | Diesel | Kraftstofftank: | 100l |
| Motormarke: | Beinei F4L912 | Bewerteter Arbeitszyklus: | 60 %/600 A/44 V |
Produkt-Beschreibung
Product Introduction:
For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions,LWG600B Air-cooling Welding Generator is the most reliable, versatile machine available to keep your worksite equipment fully functional and make you more productive throughout the day.
Specification Sheet:
| Welding parameters | No-load voltage (V) | DC 90 | |
| Welding current adjustment range (A) | 65-600 | ||
| Rated voltage (V) | 44 | ||
| Rated duty cycle (%) | 60 | ||
| Electrode code (mm) | 2.5-10 | ||
| Auxiliary power output parameters | Number of phases | Single | |
| Rated frequency (HZ) | 60 | ||
| Rated voltage (V) | 120 | 240 | |
| Rated power (KW) | 2.0 | 4.1 | |
| Power factor | 1 | ||
| Rated current | 17 | 17 | |
| Engine parameters | Brand | Beinei | |
| Model | F4L912 | ||
| Engine type | Four-cylinder, in-line, naturally aspirated, air-cooled, four-stroke | ||
| Bore*stroke (mm) | 100*120 | ||
| Displacement (cc) | 3770CC | ||
| Compression ratio | 17:01 | ||
| Power/speed | Max:42kW/1800rpm；Rated:38kW/1800rpm | ||
| Max:35kW/1500rpm；Rated:32kW/1500rpm | |||
| Whole unit | Fuel tank | 100liters | |
| Dimension | 1724*823*1058mm | ||
| Weight | 880kg | ||
| Protection class | IP23 | ||
